Inconel Alloy Flanges Supplier & Stockist in India
Inconel Alloy 600/601/625/718 Socketweld, Slip On, Blind Flanges Exporter
ASTM / ASME SB 564 / 160 / 472 Inconel Alloy N06600/N06601/N06625/N07718 Threaded, Forged, Lap Joint Flanges Manufacturer & Trader

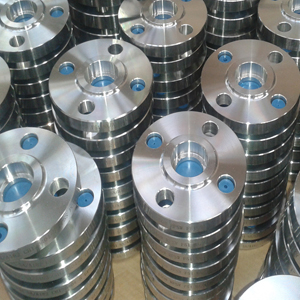

Prithvi Steel & Engineering Co. is one of the known supplier and stockiest of Inconel Alloy Flanges, located in Mumbai. Conforming different quality standards, the inconel flanges are engineered in various profiles like Inconel 600, Inconel 601, Inconel 617, Inconel 625, Inconel 718.
Inconel alloy flanges are specially appropriate for chemical process industry, industrial heating equipment, marine engineering, offshore oil and gas platforms, pulp and paper manufacturing and nuclear industries. Due to accuracy designing and machining along the use of most excellent quality raw materials, these inconel flanges encompass properties like nonmagnetic, high strength & toughness, heat resistance, chemical resistance, excellent fatigue strength and stress-corrosion cracking resistance.
Specification for Inconel Alloy 600/601/625/718 Flanges
| Specifications | ASTM / ASME SB 564 / 160 / 472 |
| Grades | Inconel 600 (UNS No. N06600) 2.4816 Inconel 601 (UNS No. N06601) 2.4851 Inconel 625 (UNS No. N06625) 2.4856 Inconel 718 (UNS No. N07718) 2.4668 |
| Range | ½" NB to 12" NB |
| Dimensions | ANSI B 16.5, BS 1560. BS 10, IS 6392, B-2.1 NPT, API, DIN, JIS. MSS SP 44 |
| Class | 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS , ASA 150#, ASA 300# DIN ND 6,10,16,25,40 Etc. |
Chemical Composition for Inconel Alloy 600 Flanges
| Grade | Ni | Fe | C | Mn | Si | Cu | Cr | S |
|---|---|---|---|---|---|---|---|---|
| Inconel 600 | 72.0 min | 6.0 - 10.0 | 0.15 max | 1.0 max | 0.5 max | 0.5 max | 14.0 - 17.0 | 0.015 max |
Chemical Composition for Inconel Alloy 601 Flanges
| Inconel 601 | Ni | Fe | C | Mn | Si | Cu | Cr | S | Al |
|---|---|---|---|---|---|---|---|---|---|
| 58.0 – 63.0 | Balance | 0.10 max | 1.0 max | 0.5 max | 1.0 max | 21.0 – 25.0 | 0.015 max | 1.0 – 1.7 |
Chemical Composition for Inconel Alloy 625 Flanges
| Grade | Ni | Fe | C | Mn | Si | Cr2 | Mo | Co | Al | Ti | Nb + Ta | P | S |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Inconel 625 | 58.0 min | 5.0 max | 0.10 max | 0.50 max | 0.50 max | 20.0-23.0 | 8.0-10.0 | 1.0 max | 0.40 max | 0.40 max | 3.15–4.15 | 0.015 max | 0.015 max |
Chemical Composition for Inconel Alloy 718 Flanges
| Inconel | % | Ni | Cr | Fe | Mo | Nb | Co | C | Mn | Si | S | Cu | Al | Ti |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 718 | Min. | 50 | 17 | balance | 2.8 | 4.75 | 0.2 | 0.7 | ||||||
| Max. | 55 | 21 | 3.3 | 5.5 | 1 | 0.08 | 0.35 | 0.35 | 0.01 | 0.3 | 0.8 |
Inconel Alloy Flanges, Inconel Alloy 600 Flanges, Inconel Alloy 601 Flanges, Inconel Alloy 625 Flanges, Inconel Alloy 718 Flanges, Inconel Alloy 600 Socketweld Flanges , Inconel Alloy 601 Forged Flanges, Inconel Alloy 625 Lap Joint Flanges, Inconel Alloy 718 Threaded Flanges, Inconel Alloy Flanges supplier, Inconel Alloy Flanges Stockist
Prithvi Steel & Engineering Co. exports Inconel Alloy 600/601/625/718 Flanges to Saudi Arabia, UAE, Bahrain, China, Peru, Nigeria, Jordan, Muscat, Kuwait, Dubai, Thailand (Bangkok), Venezuela, Germany, Canada, Russia, Australia, Vietnam, Kazaksthan, Jiddah, Libya, Yemen, Algeria, Qatar, Oman, Iran, United States Of America, United Kingdom, Australia, South Africa, Mexico, Turkey, France, European Union, New Zealand, Angola, Congo, Kenya, Lebanon, Spain, Indonesia, Malaysia, Lebanon, Iraq, Iran, Egypt, Madagascar, Sri Lanka, Denmark, Poland, Italy, Brazil, Sudan, Singapore And Netherlands.
If you have any enquiries related to Inconel Alloy 600/601/625/718 Flanges kindly get back to us on :-
Telephone :- +91-22-6637 3111 / 6639 4241
Email :- prithvisteel@yahoo.co.in / info@prithvisteelengg.com
