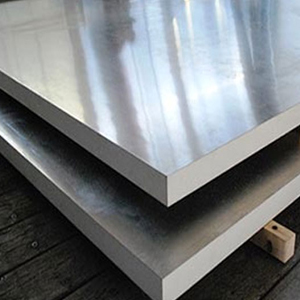

Duplex/ Super Duplex Steel Plates & Sheets Supplier & Stockist in India
Duplex/ Super Duplex Steel 2205/2507 Plates & Sheets Exporter
ASTM A240 Duplex/ Super Duplex Steel S31803/S32750/S32760 Plates & Sheets Manufacturer & Trader
Prithvi Steel & Engineering Co. is the leading supplier and Stockist in the industry for Duplex Sheets & Plates & Super Duplex Sheets & Plates. We also manufacture and export the same. Various grades available in Duplex Sheets & Plates & Super Duplex Sheets & Plates such as 2205 and 2507.
Super Duplex steel is one of the other type of Duplex steel, which content high level of molybdenum, nickel, and chromium and mechanical properties. It is well-known for its high corrosion resistance, high resistance to stress corrosion cracking, high yield strength and tensile strength. It is used for offshore oil and gas industries and can be found in flow lines, manifolds, risers, process vessels, separators, coolers, and process piping. We provide various sizes and specifications according to customer requirements.
Specification for Duplex/ Super Duplex Steel 2205/2507 Plates & Sheets
| Specifications | ASTM A240 / ASME SA240 |
| Dimensions | ASTM, ASME and API |
| Grades | Duplex Steel 2205 (UNS No. S31803) 1.4462 Super Duplex Steel 2507 (UNS No. S32750/S32760) 1.4410 |
| Size | 5 mm To 100 mm thick in 1000 mm TO 2500 mm width & 2500 mm to 12500 mm |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) |
| Schedule | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
Chemical Composition for Duplex Steel 2205 Plates & Sheets
| Duplex Steel 2205 | Ni | Cr | Mo | Mn | Si | C | N | S | P | Fe |
|---|---|---|---|---|---|---|---|---|---|---|
| MIN | 4.5 | 22.0 | 3.0 | - | - | - | 0.14 | - | - | - |
| MAX | 6.5 | 23.0 | 3.5 | 2.0 | 1.0 | 0.03 | 0.2 | 0.02 | 0.03 | Balance |
Chemical Composition for Super Duplex Steel 2507 Plates & Sheets
| Grade | C | Si | Mn | P | S | Cr | Mo | Ni | N | Other |
|---|---|---|---|---|---|---|---|---|---|---|
| 2507 | 0.030 | 0.80 | 1.20 | 0.035 | 0.020 | 24.0/26.0 | 3.0/5.0 | 6.00/8.00 | 0.24/0.32 | Cu:0.50 |
Duplex/ Super Duplex Steel Plates and Sheets, Duplex/ Super Duplex Steel 2205 Plates and Sheets, Duplex/ Super Duplex Steel 2507 Plates and Sheets, Duplex/ Super Duplex Steel 2205 Buttweld Plates and Sheets , Duplex/ Super Duplex Steel 2507 Forged Plates and Sheets, Duplex/ Super Duplex Steel Plates and Sheets supplier, Duplex/ Super Duplex Steel Plates and Sheets Stockist
Prithvi Steel & Engineering Co. exports Duplex/ Super Duplex Steel 2205/2507 Plates & Sheets to Saudi Arabia, UAE, Bahrain, China, Peru, Nigeria, Jordan, Muscat, Kuwait, Dubai, Thailand (Bangkok), Venezuela, Germany, Canada, Russia, Australia, Vietnam, Kazaksthan, Jiddah, Libya, Yemen, Algeria, Qatar, Oman, Iran, United States Of America, United Kingdom, Australia, South Africa, Mexico, Turkey, France, European Union, New Zealand, Angola, Congo, Kenya, Lebanon, Spain, Indonesia, Malaysia, Lebanon, Iraq, Iran, Egypt, Madagascar, Sri Lanka, Denmark, Poland, Italy, Brazil, Sudan, Singapore And Netherlands.
If you have any enquiries related to Duplex/ Super Duplex Steel 2205/2507 Plates & Sheets kindly get back to us on :-
Telephone :- +91-22-6637 3111 / 6639 4241
Email :- prithvisteel@yahoo.co.in / info@prithvisteelengg.com
