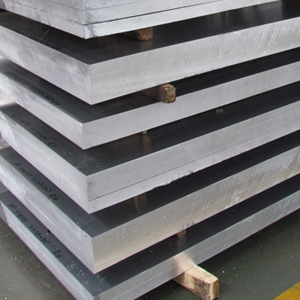

Incoloy Alloy Plates & Sheets Supplier & Stockist in India
Incoloy Alloy 800/825 Plates & Sheets Exporter
ASME SB-424 Incoloy Alloy N08800/N08825 Plates & Sheets Manufacturer & Trader
Prithvi Steel & Engineering Co. is one of the leading supplier and stockist of Incoloy alloy Plates & Sheets, manufactured using high quality raw material with taking care of industrial orders. With the advice of skilled specialists, Prithvi Steel & Engineering Co. are occupied with offering paramount rate Incoloy 800 and 825 Sheets and Plates on widespread scale.
These Incoloy Sheets and Plates have impressive resistance towards heat, damaging medium and nervousness disintegration part. Incoloy Alloy is a widely used material on construction site for equipment that must have high strength and resist carburization, oxidation and other harmful effects of high-temperature exposure. However, for high temperature applications requiring optimum rupture and creep properties. Other than this its usages include the production of gasoline, solvents, explosives, inorganic and organic chemicals, pharmaceuticals, and food and synthetic materials. Available in various assessments, these plates and sheets are furthermore altered by clients' necessities.
Specification for Incoloy Alloy 800/825 Plates & Sheets
| Specifications | ASME SB-424 |
| Dimensions | ASTM, ASME and API |
| Grades | Incoloy 800(UNS No. N08800) 1.4876 Incoloy 825(UNS No. N08825) 2.4858 |
| Forms | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) |
| Thickness | 0.1 mm to 12 mm Thk. |
| Size | 15NB to 150NB In |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
Chemical Composition for Incoloy Alloy 800 Plates & Sheets
| Incoloy | 800 | 800H | 800HT |
|---|---|---|---|
| Ni | 30-35 | 30-35 | 30-35 |
| Fe | 39.5 min | 39.5 min | 39.5 min |
| Cr | 19-23 | 19-23 | 19-23 |
| Cu | 0.75 max | 0.75 max | 0.75 max |
| Ti | 0.15-0.60 | 0.15-0.60 | 0.25-0.60 |
| Al | 0.15-0.60 | 0.15-0.60 | 0.85-1.20 |
| C | 0.1 max | 0.05-0.1 | 0.06-0.1 |
| Mn | 1.5 max | 1.5 max | 1.5 max |
| S | 0.015 max | 0.015 max | 0.015 max |
| Si | 1.0 max | 1.0 max | 1.0 max |
Chemical Composition for Incoloy Alloy 825 Plates & Sheets
| Grade | Ni | Cr | Mo | Cu | Ti | Fe | C | Mn | S | Si | Al |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Incoloy 825 | 38.0 – 46.0 | 19.5 – 23.5 | 2.5 – 3.5 | 1.5 – 3.0 | 0.6 – 1.2 | 22.0 min (~33%) | 0.05 max | 1.0 max | 0.03 max | 0.5 max | 0.2 max |
Incoloy Alloy Plates and Sheets, Incoloy Alloy 800 Plates and Sheets, Incoloy Alloy 825 Plates and Sheets, Incoloy Alloy 800 Seamless Plates and Sheets, Incoloy Alloy 825 welded Plates and Sheets, Incoloy Alloy Plates and Sheets supplier, Incoloy Alloy Plates and Sheets Stockist .
Prithvi Steel & Engineering Co. exports Incoloy Alloy 800/825 Plates & Sheets to Saudi Arabia, UAE, Bahrain, China, Peru, Nigeria, Jordan, Muscat, Kuwait, Dubai, Thailand (Bangkok), Venezuela, Germany, Canada, Russia, Australia, Vietnam, Kazaksthan, Jiddah, Libya, Yemen, Algeria, Qatar, Oman, Iran, United States Of America, United Kingdom, Australia, South Africa, Mexico, Turkey, France, European Union, New Zealand, Angola, Congo, Kenya, Lebanon, Spain, Indonesia, Malaysia, Lebanon, Iraq, Iran, Egypt, Madagascar, Sri Lanka, Denmark, Poland, Italy, Brazil, Sudan, Singapore And Netherlands.
If you have any enquiries related to Incoloy Alloy 800/825 Plates & Sheets kindly get back to us on :-
Telephone :- +91-22-6637 3111 / 6639 4241
Email :- prithvisteel@yahoo.co.in / info@prithvisteelengg.com
